UNWINDING JACKS 1200
CHANDELLES DE DEROULAGE - Image 2
CHANDELLES DE DEROULAGE - Image 3

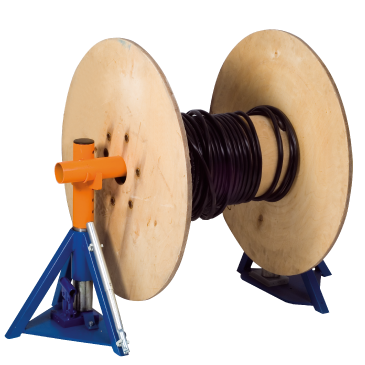

UNWINDING JACKS 1200

TYPE 1200

CHARACTERISTICS

  • Maximum load: 500 kg.
  • Power-assisted lifting with lever control.
  • Lever also controls the lowering valve (1 full turn maximum).
  • Size: 450 x 305 x 550mm.
  • Weight: 25kg in total (2 parts + 1 axle).
  • Delivered with an axle Ø 60 length 1 metre.

Additional Information

Diamètre

1200, 1650, 2000
Category:

Made in France

Certified compliant machine

Fact sheet

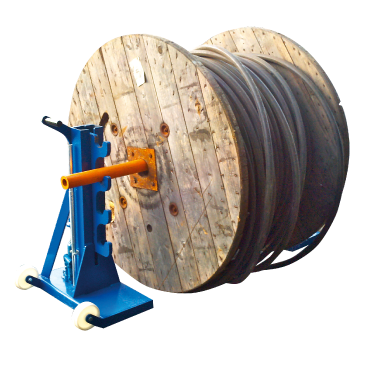

UNWINDING JACKS

TYPE 1650

For cable drums Ø maximum 1650

  • Composed of 2 independent pieces with 5 axle supports each.
  • Axle supports in Ertalon for smooth and consistent unwinding.
  • Very stable on the ground.
  • Bearing system for smooth rolling.
  • Manual lifting, with a hydraulic spring in each unit.
  • 2 wheels and a handle for ease of movement.
  • Four 16mm holes for fixing the system in place for use in the cutting workshop.
  • Axle 1700mm x 76mm, 2 clamping sockets.

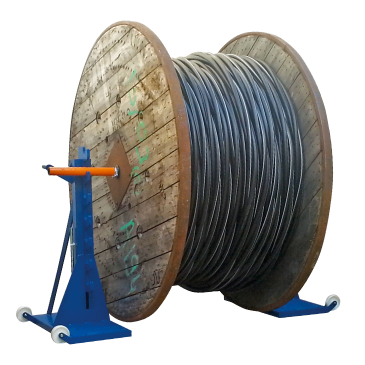

UNWINDING JACKS

TYPE 2600

For cable drums Ø maximum 1650

Composed of 2 independent pieces with 5 axle supports each.
Axle supports in Ertalon for smooth and consistent unwinding.
Very stable on the ground.
Bearing system for smooth rolling.
Manual lifting, with a hydraulic spring in each unit.
2 wheels and a handle for ease of movement.
Four 16mm holes for fixing the system in place for use in the cutting workshop.
Axle 1700mm x 76mm, 2 clamping sockets.
